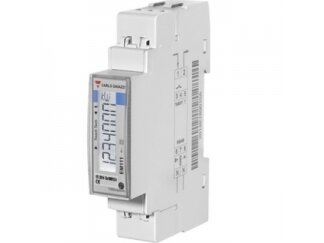

Modulinis elektros apskaitos skaitiklis

230VLN AC 5(45)A IP51

Skirtas elektros stebeti nutoliusius elektros energijos vartotojus per Modbus portą

Nekomercinei apskaitai

• Single phase energy analyzer
• Class 1 (kWh) according to EN62053-21
• Class B (kWh) according to EN50470-3
• Accuracy ±0.5% RDG (current/voltage)
• Direct current measurement up to 32 AAC
• Backlit LCD display with integrated touch key-pad
• Energy readout on display: 7 digit
• Variable readout on display: 4 digit
• Energy measurement: kWh and kvarh (imported/
exported); kWh+ by 2 tariffs
• System variables, kW, kvar, V, A, PF, Hz, kWdmd,
kWdmd peak
• Self power supply
• Dimensions: 1-DIN module
• Protection degree (front): IP51
• Pulse output (optional, by open collector PNP)
• RS485 Modbus port (optional)
• M-bus port (optional)
