Technical Data:

Number of Buttons:

2 buttons designed to control single speed functions (e.g., up and down).
Key Switch:

The key switch is designed for security, allowing activation or locking of control functions to ensure usage only by authorized personnel.
Rated Current:

10 A. This is sufficient current to ensure reliable crane control without excessive heat buildup.
Protection Level:

IP65 protection. This means the control panel is completely protected from dust and water splashes, making it suitable for both outdoor and indoor conditions where moisture contact may occur.
Insulation Voltage:

Typically 500 V, ensuring safe and reliable device operation under high voltage in industrial networks.
Operating Temperature:

Operating temperature range from -25°C to +70°C. This allows the panel to be used in various climate conditions, including cold and hot environments.
Mechanical Resistance:

The construction is resistant to shocks and vibrations, designed for intensive industrial environments.
Certificates and Safety:

CE Certification:

Complies with European Union safety, health, and environmental protection standards. Ensures that the product meets requirements for industrial devices and automation systems.
RoHS Compliance:

The product complies with the RoHS directive, which restricts the use of certain hazardous substances in electronic devices.
Overload Protection:

Internal overload or short-circuit protection to ensure operator and equipment safety.
Protection Against Unauthorized Use:

The key switch prevents unauthorized use of the panel. This is especially useful in environments where control must be restricted to certain personnel.
Compatibility:

Electrical Systems:

The panel is compatible with standard industrial electrical systems. It can be connected to the control system via a simple wiring configuration.
Crane Control Systems:

Suitable for use in various types of cranes, including single-speed cranes, in small and medium load lifting devices.
Industrial Environments:

Used in manufacturing, warehousing, and logistics sectors, where simple and reliable crane control is required.
Functionality:

Ergonomic Design:

The buttons are large and easy to press, even when wearing gloves, which is crucial in industrial environments.
Robust Construction:

The panel is made from high-quality materials resistant to chemical exposure, temperature fluctuations, and mechanical damage.
Dust and Water Protection:

With an IP65 protection rating, the panel can be used in various conditions, including dusty and humid environments, without losing functionality.
Easy Installation and Maintenance:

The panel is easy to install and features a straightforward wiring layout that can be quickly connected and maintained.

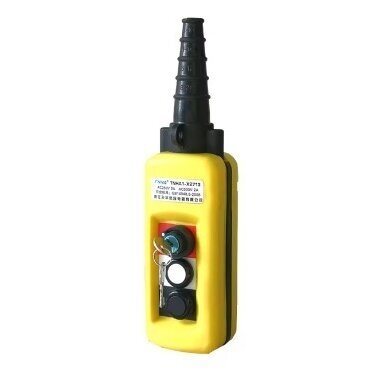

This crane control panel is an excellent choice when a simple yet reliable solution is needed for industrial environments.
