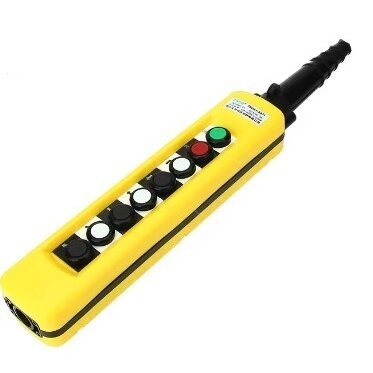

Technical Data:

Button Configuration:

8 control buttons:
6 buttons are for controlling the movement directions of the crane or hoist (e.g., up/down, left/right, forward/backward).
1 green "Start" button: used for system activation.
1 red "Stop" button: used for emergency stop.
Power Supply:

The controller can be connected to 24V DC, 48V AC, or 110-230V AC power networks, depending on the device and control system.
Current Load:

10A–15A (depends on the model and specific operating environment).
Housing:

Made of industrial-grade impact-resistant plastic, which is resistant to mechanical impacts and environmental factors.
The housing is yellow, ensuring good visibility in industrial environments.
Protection Class:

IP65: Ensures resistance to dust and water splashes. The controller can be used outdoors in harsh weather conditions.
Dimensions and Weight:

Standard-sized crane control panel, comfortable to hold, with a long cable adapted for industrial work conditions.
Functionality:

Control Directions:

Buttons are designed for various control directions (up/down, left/right), ensuring smooth operation of the crane or hoist.
"Start" and "Stop" buttons are color-coded for easy identification in critical situations.
Single or Double Speed Control:

Offers single or double speed modes (depending on configuration), providing precise movement control.
Emergency Stop Function:

The red "Stop" button allows the operator to immediately halt operations in case of an emergency, ensuring safety.
Ergonomic Design:

Buttons are arranged for easy access and use during long work sessions. The handle is designed for comfortable holding, even in extreme working conditions.
Safety:

Overload Protection:

The system is equipped with overload protection, reducing risks to both the operator and the crane system.
Emergency Stop Button:

The red STOP button is easily accessible and used in critical situations to instantly stop crane or hoist movement.
IP65 Protection Class:

Ensures the device is fully protected from dust and resistant to water exposure, making it suitable for challenging work environments.
Certifications and Compliance:

CE Certification:

Complies with European Union safety and quality standards, ensuring the device is safe to use.
RoHS Certification:

Ensures that no hazardous materials such as lead or mercury were used in the manufacturing process.
EN / IEC 60947-5-1:

Meets the standards for the quality and safety requirements of industrial control devices, ensuring reliability of mechanical and electrical components.
Compatibility:

Industrial Crane Systems:

Suitable for various types of industrial cranes and hoists that require precise and safe operation.
Electrical Systems:

Supports various electrical systems, ensuring compatibility with existing solutions.
Application Areas:

Industrial Manufacturing and Warehousing:

Used on production lines where crane mechanism control is required.
Transportation and Logistics Terminals:

Employed in warehouses and ports for lifting and transporting goods.
Construction Industry:

Suitable for use on construction sites where a reliable and durable device is needed for outdoor operations.
Summary:

This crane control panel is a reliable device designed for operating various crane functions with clearly marked and easy-to-use buttons. It is well-suited for use in demanding industrial conditions and offers a high level of durability and safety.
