Technical Data:

Power Voltage:

Up to 500 V AC, allowing control of powerful electrical systems typical for industrial cranes.
Current Strength:

15A – the panel can control loads up to 15 amperes, ensuring reliable control even during high loads.
Protection Rating:

IP55 – dust and water splash resistant. This protection rating allows the device to be used both indoors and outdoors, where working conditions can be challenging.
Number of Buttons:

5 control buttons: designed to control different functions and directions. There is also a red emergency stop button that ensures quick and safe stopping in case of an emergency.
Functionality:

Control Directions: The buttons allow for controlling the crane's movement in different directions (up, down, left, right) as well as starting/stopping the crane.
Materials and Construction:

The panel is made of high-quality plastics resistant to UV rays and impacts. The housing is robust and withstands daily industrial loads.
Ergonomic Design: Easy to use even during prolonged work, with buttons arranged for convenient one-handed operation.
Dimensions:

Typically manufactured to be compact and robust, but specific dimensions are not provided. It can be mounted on fixed or mobile equipment elements.
Certificates and Safety:

CE Certification:

Ensures that the product meets the safety, health, and environmental protection requirements of the European Union.
RoHS Compliance:

Environmentally friendly, as the product does not contain certain hazardous chemicals restricted by European directives.
Emergency Stop Button:

The emergency stop button with a latching function is a critical component designed to ensure operator and equipment safety. When the stop button is activated, the crane stops immediately.
Protection Mechanisms:

Integrated electrical fuses and contact short-circuit protection reduce the risk of electrical accidents.
Compatibility and Application:

Application:

This control panel is widely used in industrial lifting equipment such as electric cranes, bridge cranes, hoists, and other lifting systems. It is ideal for use in manufacturing, construction, and logistics.
Compatibility:

Compatible with various industrial electrical systems and can be integrated into existing crane control solutions.
Universal mounting solutions allow for easy adaptation of the panel in both new and old crane systems.
Flexibility of Functionality:

The ability to control crane systems at different speeds allows the operator to adjust the lifting speed according to load requirements, thereby enhancing safety and efficiency.

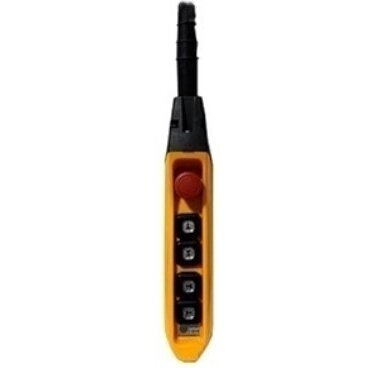

Conclusions: The industrial crane control panel is a reliable and safe tool designed for the management of heavy cranes. With 5 buttons and an emergency stop button, this device ensures simple operation and high operator safety. Due to its IP55 protection rating and resistance to challenging conditions, it is well-suited for use even in harsh industrial environments.
