Technical Data:

Input Current (Control):

Control Voltage: 3-32V DC
Input Current: 7.5 mA @ 5V DC (typical control current level)
Output Current (Load):

Rated Load: 100A @ 24–480V AC
Operating Voltage: 24–480V AC (Alternating Current)
Minimum Output Load Voltage: 24V AC
Maximum Output Load Voltage: 480V AC
Frequency: 50Hz / 60Hz
Switching Time:

Turn-On Time: <10ms
Turn-Off Time: <10ms
Housing Material:

The integrated aluminum heatsink helps dissipate heat, ensuring long-term operation.
Protected against mechanical damage and environmental impacts.

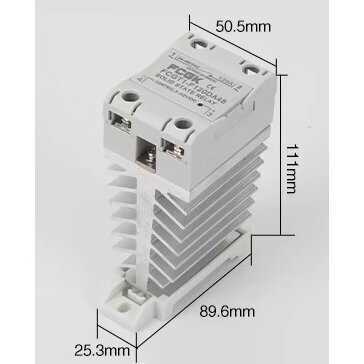

Mounting:

DIN Rail Mounting: Compact housing designed for mounting on a standard DIN rail, making it easy to integrate the relay into existing control cabinets.
Single-Phase Relay: Controls one phase.
Temperature Range:

Operating Temperature: -30°C to +80°C
Storage Temperature: -40°C to +100°C
Protection Level:

IP20 Protection Level: The relay is protected from direct contact with internal components but is not fully protected against dust or water, so it is recommended for indoor or controlled environments.
Efficiency:

High efficiency and long service life, as there are no mechanical contacts that could wear out.
Functionality:

Solid-State Technology:

SSR relays have no moving parts, making them quiet in operation and offering a much longer lifespan than traditional electromagnetic relays. SSR relays can handle millions of switching cycles without wear.
High Reliability:

Without mechanical contacts, the relay is more resistant to vibrations and shocks, making it suitable for industrial environments that operate under challenging conditions.
Safe Operation:

There are no sparks or electrical arcs, making SSR relays safer in environments where there is a risk of explosion or fire.
Fast Operation:

The turn-on/off time is less than 10 milliseconds, allowing the relay to respond quickly to control signals, ideal for fast switching operations.
Automatic Load Control:

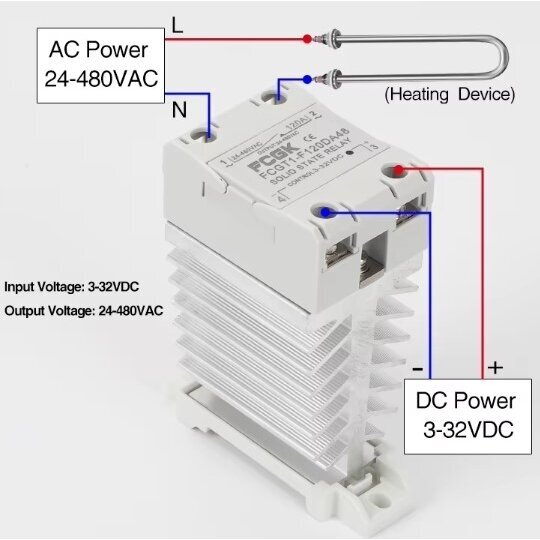

The relay can automatically switch loads when control voltage is applied to the input, and the control is performed by a DC signal.
Minimal Heat Generation:

The integrated heatsink efficiently dissipates heat, ensuring stable temperature and long-term operation.
Compatibility:

Control Systems:

Suitable for use with various control systems that utilize a 3-32V DC control signal and need to manage alternating current.
Load Management:

SSR can control a wide range of AC devices, such as motors, heating elements, lighting, and other industrial equipment operating up to 480V AC.
Automation Applications:

Widely used in industrial automation systems, production lines, heating, ventilation, and air conditioning (HVAC) systems.
Safety:

Protection Features:

The relay includes built-in protection against overvoltage and excessive current, protecting connected devices from failure.
Electrical Insulation:

Electrical insulation between the input and output sides ensures that control signals are not affected by load current.
Certificates:

CE Certification: Ensures the product complies with the European Union's safety requirements.
RoHS Compliance: Guarantees that the device is manufactured in accordance with restrictions on the use of hazardous substances.
Applications:

Industrial Equipment and Production Lines: Perfect for frequent switching in industrial systems.
Heating and Ventilation (HVAC) Systems: Used to control heating elements or fans.
Lighting Control: Manages lighting devices in both industrial and commercial facilities.
Motor Control: Used for continuous speed or specific motor operations where precise voltage control is needed.
Summary: The solid-state relay is a reliable, compact, and quiet device designed to switch alternating current in industrial, commercial, or automation systems. Its fast operation, long lifespan, safe performance, and easy DIN rail mounting make this relay an excellent choice for managing loads up to 100A in 24-480V AC circuits.
