Technical Data:

Power Supply Voltage:

230V AC ± 10%, 50Hz
Detection Angle:

360° (full circular detection)

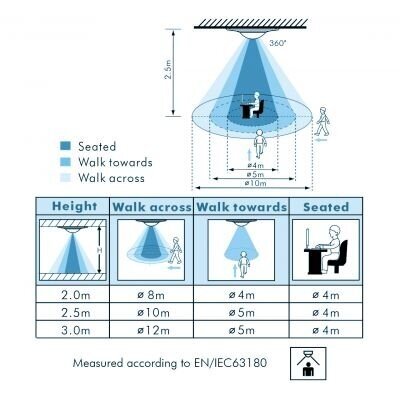

Detection Distance:

Maximum detection distance up to 10 m (depends on mounting height and environmental conditions).
Connecting Power:

Supports up to 400 W LED lighting systems.
Protection Level:

IP44 – dust and water splash resistance, allowing the sensor to be used in outdoor conditions.

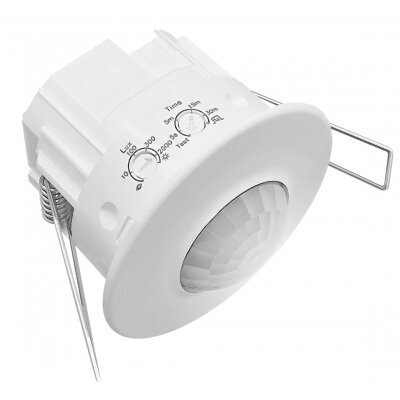

Time Setting:

Time adjustment from 5 seconds to 30 minutes (user adjustable).
Ambient Light Detection:

Adjustable lighting level at which the sensor will operate (from 10 lux to 2000 lux), allowing the sensor to be adapted to both dark and bright environments.
Mounting Height:

Recommended mounting height of 2.5 m.
Operating Temperature:

From 0°C to +45°C.
Housing:

Plastic, UV resistant, ensuring that it does not lose color or durability over time.
Functionality:

Detection Technology:

PIR (Passive Infrared) technology detects motion based on heat sources, ensuring reliable detection of people or heat-emitting objects.
Adjustable Settings:

The sensor allows adjustment of light sensitivity and operation time, enabling the user to optimize sensor functions according to specific needs.
Automatic On/Off:

The sensor activates connected lighting or other devices only when motion is detected, thus saving energy.
Certificates and Safety:

Certificates:

CE certification, ensuring compliance with European Union safety, health, and environmental standards.
RoHS compliance, ensuring that the device does not contain hazardous substances such as lead or mercury.
Safety:

IP44 protection level ensures that the device is resistant to environmental factors such as dust and water splashes.
Supports protection against electrical surges to prevent damage to the sensor.
Compatibility:

Lighting Systems:

Compatible with various lighting systems, including incandescent bulbs, LED lighting, and energy-saving fluorescent bulbs.
Control Systems:

Can be used in conjunction with automated control systems, both for indoor and outdoor lighting and security management systems.
Application Areas:

Ideal for automated indoor lighting (corridors, staircases, warehouses).
Energy-saving solutions for commercial and industrial buildings.
Vexen PF-360-10-1BWi is an excellent choice for both residential and commercial users seeking a reliable and efficient motion sensor with easy integration and adjustable parameters.
