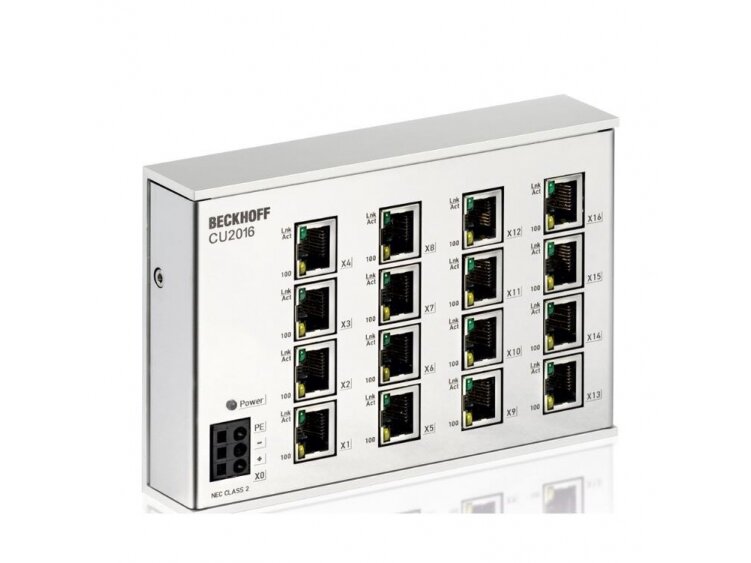

Komunikatorius RJ45 16 portų 24V DIN 10/100 Mbits/s CU2016 | 16-port Ethernet Switch
Komunikatorius RJ45 16 portų 24V DIN 10/100 Mbits/s CU2016 | 16-port Ethernet Switch
Kodas: CU2016Bus system:
all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode, unmanaged
Number of Ethernet ports 16
Ethernet interface 10BASE-T/100BASE-TX Ethernet with 16 x RJ45
Cable length up to 100 m twisted pair
Data transfer rates 10/100 Mbit/s,IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible,
automatic settings
Hardware diagnosis 2 LEDs per channel (activity, link, 10/100 Mbit)
Power supply 24 (18…30) V DC, 100 mA, 3-pin connection (+, -, PE)
Weight 320 g
Dimensions (W x H x D) approx. 85 mm x 100 mm x 30 mm
Operating/storage temperature 0…+55 °C/-25…+85 °C-
The Beckhoff Ethernet Switches offer eight RJ45 Ethernet ports. Switches relay incoming Ethernet frames to the destination ports. In full duplex mode, they prevent collisions. They can be used universally in automation and office networks. User-friendly installation via integrated DIN rail adapter.
The switches meet the special requirements of real-time-capable Industrial Ethernet solutions through several outstanding features:
compact design in stainless steel housing
10/100 Mbaud, half or full duplex, with automatic baud rate detection
cross-over detection: automatic detection and correction of crossover and straight-through Ethernet cables
clear, quick diagnosis, two LEDs for each Ethernet port
fast DIN rail mounting
industrial designIšbandei? Būk pirmas ir įvertink - padėk kitiems apsispręsti.Rašyti atsiliepimą Susijusios prekės
